2.4-inch LCD Handheld Infrared Thermal Imager Camera, 24x32 Sensor, -40°C to 300°C Temp Range, USB Data Output, for PCB, Automotive & Electrical Component s

Features:* Equipped with a USB data transfer interface. The new firmware automatically outputs data to the USB port by default.* Supports direct connection to computer software for image display (baud rate 115200), and can also use the corresponding serial port debugging assistant.* Features temperature-dependent screen color adjustment, allowing you to set different colors for different temperatures.* The infraredhas a screenshot function and can pause the image for analysis.* Can be used for heat detection of PCB components, automotive parts, electrical switches, etc.Specifications:Part Name: Infrared Thermal ImagerMaterial: ABSColor: As shownSensor Resolution: 24 x 32 dotsPower Supply: Micro-USB port, voltage not exceeding 5VBattery Type: Lithium battery (built-in)Battery Capacity: 1000 mAhResponse Frequency: 8 HzTarget Temperature Measurement Range: -40°C to +300°COperating Environment: 0-50°CEmissivity: Adjustable from 0.01 to 1.00Sensor Probe Angle of View: MLX90640ESF-BAB probe defaults to 35 x 55 degreesScreen Size: 2.4-inch LCD, 320 x 240 resolution, displays maximum, minimum, and center temperatures, and displays coordinates of each point. Measurement accuracy: ±2°C (test conditions: ambient temperature 25°C, measuring object: boiling water 100°C)Applications: PCB component heating temperature measurement, floor heating temperature measurement, automotive component temperature measurement, appliance switch temperature measurement, air conditioner temperature measurement, microwave oven temperature measurementPackage Contents:1 x Thermal Imager1 x User ManualNote：1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.2.Please allow slight manual measurement deviation for the data.

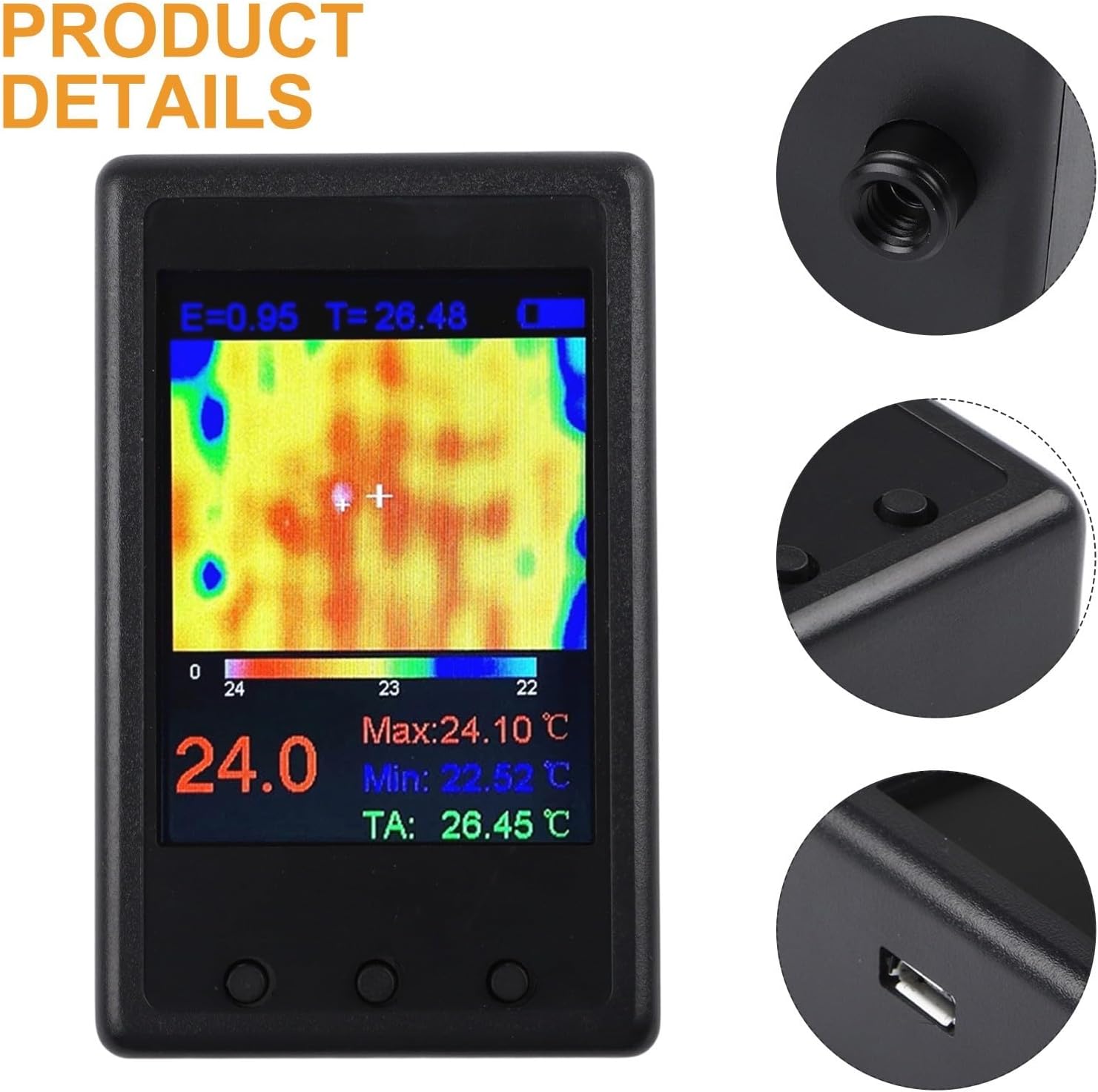

• 2.4-inch LCD DISPLAY: View real-time thermal images on a clear 320x240 screen showing max/min/center temps and pixel coordinates for precise s
• USB DATA TRANfor SFER: Connect directly to PC via micro-USB (115200 baud) to stream live thermal data or use serial debugging tools without extra hardware
• -40°C TO +300°C RANGE: Accurately measure extreme temperatures across PCBs, automotive parts, switches, HVAC, and appliances with ±2°C accuracy at 25°C ambient
• TEMPERATURE-DEPENDENT COLOR: Adjust color palettes dynamically by temperature zone to instantly identify hotspots, cold spots, and thermal gradients
• LONG LASTING BUIfor LT-IN BATTERY: Operate up to 2 hours on a 1000mAh lithium cell—ideal for field inspections, lab work, or on-the-go electrical troubleshooting
